Temperature control is an essential requirement in many modern industries. From electronics and medical equipment to food storage and laboratory instruments, maintaining Thermoelectric Cooling Module a stable temperature can directly affect performance, reliability, and product quality. Traditional cooling technologies often depend on compressors, refrigerants, and moving mechanical components. In contrast, a Thermoelectric Cooling Module provides a compact and efficient solid-state approach to temperature management.
Thermoelectric cooling technology uses the Peltier effect to transfer heat from one side of a module to another when electrical current passes through semiconductor materials. This simple operating principle makes thermoelectric modules useful in applications where precise temperature control, compact dimensions, and dependable operation are important. As technology continues to advance, these modules are becoming increasingly valuable for specialized cooling and heating systems.
What Is a Thermoelectric Cooling Module?

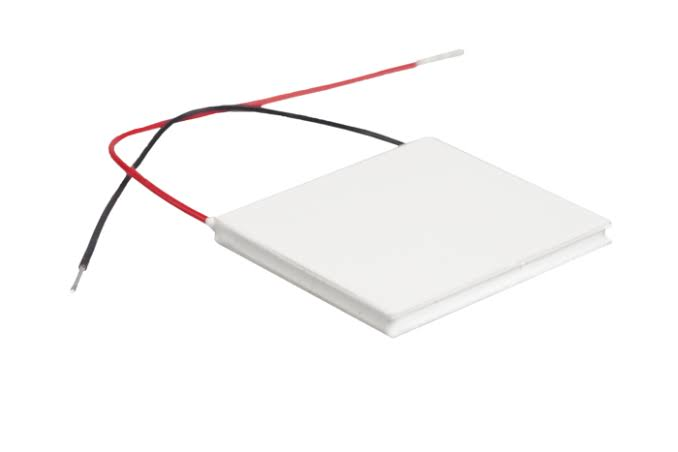

A Thermoelectric Cooling Module is a solid-state device designed to move heat using electrical energy. Unlike conventional refrigeration systems, it does not require a compressor, refrigerant gas, or complex mechanical mechanisms. The module normally contains semiconductor elements positioned between two ceramic plates.
When direct current is supplied, one side of the module becomes cold while the opposite side becomes hot. By changing the direction of the electrical current, the cooling and heating sides can be reversed. This bidirectional capability gives thermoelectric technology an advantage in systems that need both heating and cooling.
The amount of cooling depends on several factors, including electrical input, heat-load requirements, module construction, and the effectiveness of the heat dissipation system. Proper thermal management is therefore an important part of designing a reliable thermoelectric cooling solution.
How Thermoelectric Cooling Works
The operation of a Thermoelectric Cooling Module is based on the Peltier effect. Inside the module are pairs of semiconductor materials, commonly designed to create efficient movement of heat when electricity flows through them.
When current passes through the semiconductor pairs, heat is absorbed at one surface and released at the other. The cold side can then be connected to the component or area that needs cooling, while the hot side must transfer heat to the surrounding environment.
A heat sink, fan, liquid cooling system, or another thermal management method may be used to remove heat from the hot side. If heat cannot be removed effectively, the cooling performance of the module can decrease. For this reason, selecting the right module and heat-dissipation system is essential.
Key Features of Thermoelectric Cooling Modules
One of the most important features of thermoelectric technology is its compact design. Because the module does not contain large mechanical components, it can be integrated into equipment where available space is limited.
Another major feature is precise temperature control. By adjusting the electrical current supplied to the module, users can regulate the cooling performance according to system requirements. This makes thermoelectric modules suitable for sensitive applications that require stable temperatures.
Thermoelectric modules also provide reliable solid-state operation. With no compressor or refrigerant circuit, there are fewer mechanical components that can experience conventional wear. They can also operate in different orientations, making them flexible for various equipment designs.
In addition, many modules can provide both cooling and heating. Reversing the electrical polarity changes the direction of heat transfer, allowing one device to perform different temperature-control functions.
Applications in Electronics
Electronics is one of the major application areas for thermoelectric cooling technology. Modern electronic components can generate considerable heat during operation, and excessive temperatures may affect performance and service life.
A Thermoelectric Cooling Module can be used to manage the temperature of laser diodes, sensors, processors, cameras, optical components, and other sensitive electronics. Maintaining a controlled temperature can help equipment operate consistently under changing environmental conditions.
Thermoelectric systems are particularly useful when conventional air cooling is not sufficient or when a localized cooling solution is required. Their small size allows engineers to cool specific components rather than the entire enclosure.
Medical and Laboratory Applications
Temperature stability is extremely important in medical and laboratory equipment. Many instruments require controlled environments to maintain measurement accuracy and protect temperature-sensitive materials.
Thermoelectric cooling modules can be incorporated into diagnostic equipment, analytical instruments, sample storage systems, and laboratory devices. Their precise control capability makes them suitable for applications where small temperature changes can influence results.
They can also be used in portable equipment because their compact construction can simplify system design. When combined with appropriate sensors and electronic controllers, thermoelectric systems can maintain a selected temperature within a controlled range.
Food and Beverage Equipment
Portable cooling systems are another important area where thermoelectric modules can be useful. Small refrigerators, beverage coolers, portable food storage units, and temperature-controlled containers can benefit from compact solid-state cooling.
Compared with traditional compressor-based systems, thermoelectric solutions can offer a simpler mechanical design. This can be especially useful in portable products where size, weight, and vibration are important considerations.
However, the module must be selected according to the required cooling capacity. Larger thermal loads may require multiple modules or a more powerful cooling technology.
Laser and Optical Systems
Laser and optical equipment can be highly sensitive to temperature variations. Changes in operating temperature may affect wavelength, efficiency, alignment, or other performance characteristics.
Thermoelectric cooling can provide localized temperature control for laser diodes and optical components. By keeping the operating temperature more stable, the module can support consistent equipment performance.
This capability makes thermoelectric technology valuable in telecommunications, spectroscopy, imaging, measurement systems, and other optical applications.
Benefits of Thermoelectric Cooling Technology
One major benefit is precise temperature regulation. Thermoelectric modules can be controlled electronically, allowing designers to adjust cooling according to real-time temperature measurements.
Another advantage is compactness. The modules can fit into small spaces where conventional refrigeration equipment may be impractical. Their lightweight construction can also support portable applications.
Reliability is another important benefit. Since thermoelectric modules have no compressors or refrigerant circulation systems, their solid-state structure can simplify equipment design. They can also operate with relatively low vibration, which is useful for sensitive instruments.
Thermoelectric modules are also flexible because the same technology can provide heating or cooling depending on current direction. This versatility can reduce the need for separate temperature-control components in certain systems.
Important Design Considerations
Although thermoelectric cooling provides many benefits, successful implementation requires careful engineering. The hot side must be able to release the heat absorbed from the cold side as well as the electrical energy converted into additional heat.
Heat sinks, fans, liquid cooling plates, thermal interface materials, and temperature sensors may therefore be required depending on the application. Poor thermal management can significantly reduce cooling performance.
Engineers should also consider voltage, current, cooling capacity, temperature difference, module dimensions, operating environment, and expected service conditions when selecting a module.
Future of Thermoelectric Cooling Modules
The demand for compact and precise temperature-control technologies is expected to continue growing as electronic devices, medical instruments, optical systems, and portable equipment become more advanced.
Improvements in semiconductor materials, module construction, electronic controllers, and thermal management techniques may further increase the efficiency and usefulness of thermoelectric cooling systems. Their solid-state operation and precise controllability make them particularly attractive for specialized applications.
Conclusion
A Thermoelectric Cooling Module offers a practical solution for applications requiring compact, reliable, and precisely controlled temperature management. Based on the Peltier effect, it transfers heat electronically without relying on compressors or conventional refrigerant systems.
From electronics and medical instruments to laboratory equipment, food storage, lasers, and portable cooling products, thermoelectric modules can provide valuable temperature-control capabilities. Their compact design, low vibration, bidirectional operation, and electronic controllability make them an attractive choice for many modern applications.
With appropriate module selection and effective heat dissipation, thermoelectric technology can deliver dependable performance across a wide range of temperature-control systems. As industries continue seeking smaller, smarter, and more precise cooling solutions, thermoelectric modules are likely to remain an important part of modern thermal management.
